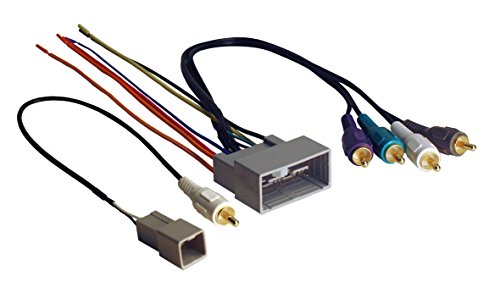

American International HWH81A 2008 Honda with RCA/SUB Input Wire Harness
- Regular price
- $11.99
- Sale price
- $11.99
- Regular price
-
$14.99 - Unit price
- /per
Sale
Sold out
Shipping calculated at checkout.
Adding product to your cart
EIA Color Codes
HOW TO WIRE AN AFTERMARKET STEREO
EIA Wire Color Codes - Aftermarket Radio Association Standard
Color codes for stereo connector harness conform to the EIA
(Electronics Industry Association)
Always refer to stereo's owner's manual for specific wiring details
(before making any connections)
CAUTION: CHINA Direct colors may differ from the wiring colors found on your stereo.
EIA Color Code by Grand Theft Audiophile |
|
| Yellow |
12V Battery / Constant |
| Red |
12V Ignition / Switched |
| Black |
Ground *Chassis Ground |
| Black / White |
**Factory Amplifier Ground |
| Blue | Power Antenna |
| Blue / White |
Factory Amplifier Remote Turn On |
| Orange | ***Illumination |
| Orange / White | ***Illumination |
| Orange / Black | ***Dash Light Dimmer / Illumination |
| Brown | Mute / Not Used - (unless for amp turn-on) |
| White | Left Front Speaker (+) |
| White / Black | Left Front Speaker (-) |
| Gray | Right Front Speaker (+) |
| Gray / Black | Right Front Speaker (-) |
| Green | Left Rear Speaker (+) |
| Green / Black | Left Rear Speaker (-) |
| Purple | Right Rear Speaker (+) |
| Purple / Black | Right Rear Speaker (-) |
|
RCA Color Location/Function (if not just Red/White) |
|
|
White RCA |
Left Front Speaker |
| Gray RCA | Right Front Speaker |
| Green RCA | Left Rear Speaker |
| Purple RCA | Right Rear Speaker |
|
RCA Red / White (if not colored) |
|
| Red RCA | Right input |
| White RCA | Left input |
|
Additional Notes:
|
|
