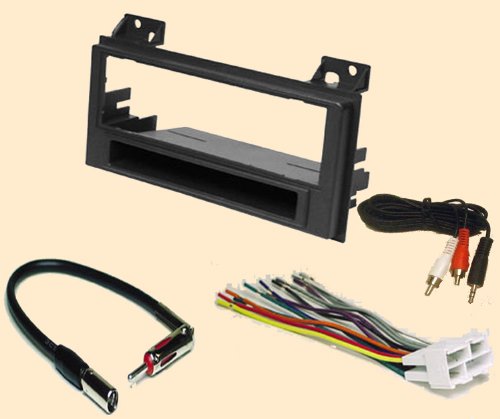

Chevy chevrolet S10 pickup 1994 1995 1996 1997 - GMC Sonoma (94 95 96 97), Jimmy (1996-1997) Isuzu Hombre (96-97) -Oldsmobile Bravada (96-97) - Stereo wiring Harness, Dash Install Kit Faceplate, with FM Antenna Adaptor (Combo Complete Aftermarket Stereo Wire and Installation Kit) - Stereo wiring Harness, Dash Install Kit Faceplate, with FM Antenna Adaptor (Combo Complete Aftermarket Stereo Wire and Installation Kit) :......DASH INSTALL KIT + RADIO WIRE HARNESS + FM ANTENNA ADAPTER **(INCLUDES ALL PARTS NEEDED FOR INSTALLATION OF AFTERMARKET RADIO) *** THE HARNESS (WILL NOT WORK on PREMIUM / AMPLIFIED SYSTEMS) **WILL NOT WORK ON FACTORY AMPLIFIED SYSTEMS: LIKE BOSE, INFINITY, JBL, ONSTAR, PIONEER, WARNING CHIMES PLAYED THROUGH FACTORY SPEAKERS, AND OTHER PREMIUM SYSTEMS *** DOES NOT WORK ON VEHICLES THAT HAVE R.A.P/CANBUS/ONSTAR/SYNC OR DELAYED TURN OFF SYSTEMS; (WHEN RADIO STAYS ON AFTER PULLING KEY FROM IGNITION, THEN TURNS OFF WHEN A DOOR IS OPENED) ! *** THIS COMBO KIT - REPLACES (FACTORY/OEM STOCK RADIO TO AFTERMARKET STEREO) -STANDARD SOUND SYSTEMS ONLY. (Not for CANBUS or Premium/Amplified SYSTEMS) - RCA to headphone adapter included
EIA Color Codes
HOW TO WIRE AN AFTERMARKET STEREO
EIA Wire Color Codes - Aftermarket Radio Association Standard
Color codes for stereo connector harness conform to the EIA
(Electronics Industry Association)
Always refer to stereo's owner's manual for specific wiring details
(before making any connections)
CAUTION: CHINA Direct colors may differ from the wiring colors found on your stereo.
EIA Color Code by Grand Theft Audiophile
|
| Yellow |
12V Battery / Constant
|
| Red |
12V Ignition / Switched
|
| Black |
Ground *Chassis Ground
|
| Black / White |
**Factory Amplifier Ground
|
| Blue |
Power Antenna |
| Blue / White |
Factory Amplifier Remote Turn On
|
| Orange |
***Illumination |
| Orange / White |
***Illumination |
| Orange / Black |
***Dash Light Dimmer / Illumination |
| Brown |
Mute / Not Used - (unless for amp turn-on) |
| White |
Left Front Speaker (+) |
| White / Black |
Left Front Speaker (-) |
| Gray |
Right Front Speaker (+) |
| Gray / Black |
Right Front Speaker (-) |
| Green |
Left Rear Speaker (+) |
| Green / Black |
Left Rear Speaker (-) |
| Purple |
Right Rear Speaker (+) |
| Purple / Black |
Right Rear Speaker (-) |
|
RCA Color Location/Function (if not just Red/White)
|
|
White RCA
|
Left Front Speaker |
| Gray RCA |
Right Front Speaker |
| Green RCA |
Left Rear Speaker |
| Purple RCA |
Right Rear Speaker |
|
RCA Red / White (if not colored)
|
| Red RCA |
Right input |
| White RCA |
Left input |
|
Additional Notes:
- Cap and insulate all unused wires individually to prevent short circuits.
- This wiring harness may not include all wire colors listed above
- Not Uncommon to have un-used wires.
- *Chassis Ground (some harnesses omit the black wire)
- Factory separate wire directly to metal Chassis at Radio Location
- **Amp Ground (not used very often) Ground wire on plug is sufficient
- ***Orange (mostly never used) Aftermarket Radios are self illuminating
- (Sometimes - the SOLID BLUE wire can be Used as an AMP Turn On wire)
|
Dash Install Kits Q&A
| Dash Kit ( Why its a Good Idea ) |
Why do I need a Dash Kit?
Today's cars have rounded edges, sometimes funky looking convex and curved stereo faces.
Dash Kits are designed to match your car radio console. For a Gapless fit with Aftermarket Radios.
Many auto makers factory radios are bigger than aftermarket radios (Some will need a Pocket or Delete Plate)
(Read Below) **
The sole purpose of an install dash kit, is to blend the new aftermarket radio so it looks like it belongs.
Professional Install shops use these very same Dash Kits when installing new Aftermarket Car Stereos
Radio in-dash installation kits are designed, specifically for particular vehicles
* EXAMPLE : AFTERMARKET RADIO IS A SINGLE DIN & OEM RADIO WAS LARGER SIZED 2 DIN
(DEFINITELY WILL NEED DASH KIT - if wanting to close up the gaps)
What is a Single-DIN, 1.5DIN, Double-DIN & Shaft Radio Mean?
"Single DIN" = Standard Aftermarket Radio Size
"Shaft Style"= Old type of radios w/ Knob Controls
1.5 DIN = Mostly Used by GM (in the Late 90's - early 2000's)
2 DIN = Many Stock Import Radios - 2xs size of Single DIN (often referred to as a Double Din) |
| Careful of Direct Imports from China & Abroad |
Unfortunately there's an increase of Cheap Stereos being sold on ebay ; Amazon and the web, that do not fit the AIAA Standards.
Many China radio models will not work with Dash Kits, because they do not pay the membership to the AIAA Aftermarket Association Guidelines : (Stick with Brand Names) just to be on the safe side.
Why? Because they make their 7in screens to fit into locations that do not require a fitment dash kit. *They do not have the info on size fitments.
Not only are they oversized, some have Odd Wiring; and don't follow the 35yr old EIA color code. Don't have detailed info from the Manufacturing Companies who make the vehicles.
Companies like Alpine, Clarion, Kenwood, Pioneer (except some *AVIC), JVC all fit; due to industry collaboration. Morotorized flip screens have similar Issues*
Please Double Check the size of your aftermarket radio before purchasing this kit.
Boss and Eonon radios are notorious for being over-sized, please be cautious when purchasing these radios.
There is Not a Dash Kit on the market that will accommodate these oversized Non Branded Radios. In essence, you get what you pay for, and unfortunately it becomes everyones problem on their attempted profit.
Double Din kits are design for use with USA Standard Double Din radio models only that are 6.2" 173mm x 99.8mm to 7" 180mm x 102mm (anything over 180mm will need to be trimmed)
|
